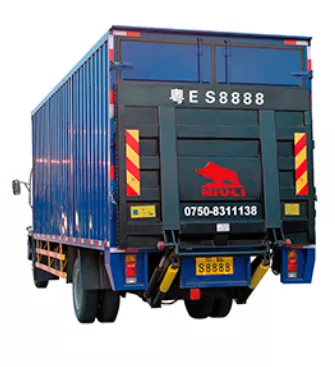

Steel Tail Lift

Steel Tail Lift

QWB

NIULI

8427900000

Product Description

Tail lift can obviate the needs to use machinery such as a forklift truck in order to load heavy items on to a vehicle, or can be used to bridge the difference in height between a loading dock and the vehicle load bed

The tail lift can be installed easily and fast.The com-plete hydraulic and electrical system is integrated into the lift.The screws are all that is eeded to mount the lift to the truck.Hook up the battery cables and the lift is ready to go.

battery cables and the lift is ready to go.

loading dock and the vehicle load bed. The tail lift can be

Product Detail

Model NL-QB10/105 NL-QB15/120 NL-QB15/150 NL-QB25/160
NL-QB15/105 NL-QB20/120 NL-QB20/150 NL-QB30/160
Platform size(mm) 1800×1800 1800×1800 2100×1800 2100×1800
1900×1800 1900×1800 2200×1800 2200×1800
2000×1800 2000×1800 2300×1800 2300×1800
2100×1800 2100×1800 2400×1800 2400×1800
2200×1800 2200×1800 2500×1800 2500×1800
Capacity(kg) 1000/1500 1500/2000 1500/2000 2500/3000
Self weight(kg) 400-450 450-520 550-600 650-700
Motor power(kw) 1.6/2.2 1.6/2.2 2.2/3 3
Frame arm length(mm) 750 800 900 1000
Frame inner width(mm) 846/948 846/948 948 948
Height from vehicle(mm) 1050 1200 1500 1600
Motor DC12V-24V/100AH-160AH
Platform working angle(°) 5-9 5-9 5-9 5-9
Average  lifting speed(mm/sec) 60-80 60-80 60-80 60-80
Hydraulic oil 46# Hydraulic oil

Description

Tail lift can obviate the needs to use machinery such as a forklift truck in order to load heavy items on to a vehicle, or can be used to bridge the difference in height between a loading dock and the vehicle load bed

The tail lift can be installed easily and fast.The com-plete hydraulic and electrical system is integrated into the lift.The screws are all that is eeded to mount the lift to the truck.Hook up the battery cables and the lift is ready to go.

battery cables and the lift is ready to go.

loading dock and the vehicle load bed. The tail lift can be

Product Detail

Model NL-QB10/105 NL-QB15/120 NL-QB15/150 NL-QB25/160
NL-QB15/105 NL-QB20/120 NL-QB20/150 NL-QB30/160
Platform size(mm) 1800×1800 1800×1800 2100×1800 2100×1800
1900×1800 1900×1800 2200×1800 2200×1800
2000×1800 2000×1800 2300×1800 2300×1800
2100×1800 2100×1800 2400×1800 2400×1800
2200×1800 2200×1800 2500×1800 2500×1800
Capacity(kg) 1000/1500 1500/2000 1500/2000 2500/3000
Self weight(kg) 400-450 450-520 550-600 650-700
Motor power(kw) 1.6/2.2 1.6/2.2 2.2/3 3
Frame arm length(mm) 750 800 900 1000
Frame inner width(mm) 846/948 846/948 948 948
Height from vehicle(mm) 1050 1200 1500 1600
Motor DC12V-24V/100AH-160AH
Platform working angle(°) 5-9 5-9 5-9 5-9
Average  lifting speed(mm/sec) 60-80 60-80 60-80 60-80
Hydraulic oil 46# Hydraulic oil
