Product Description

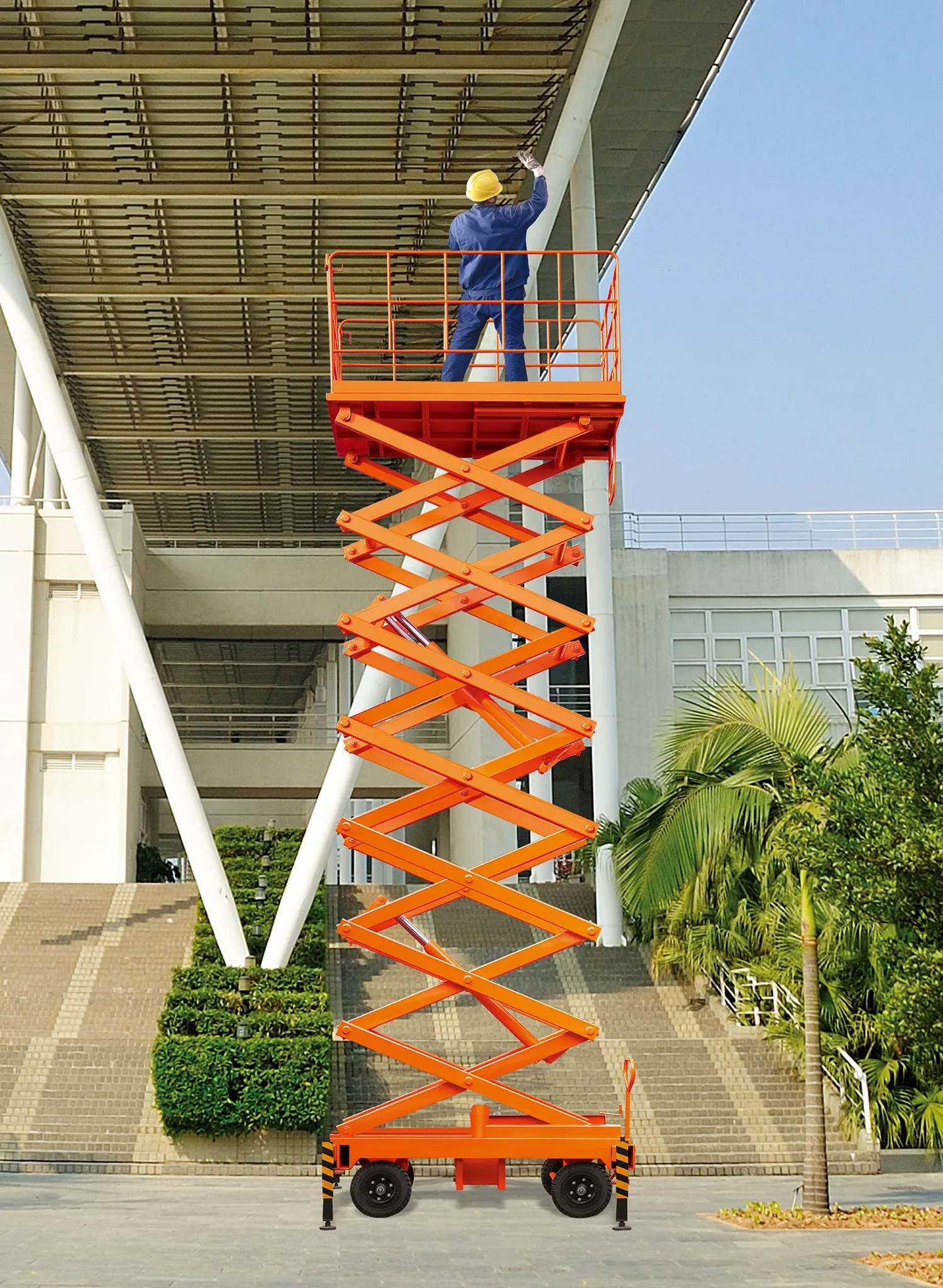

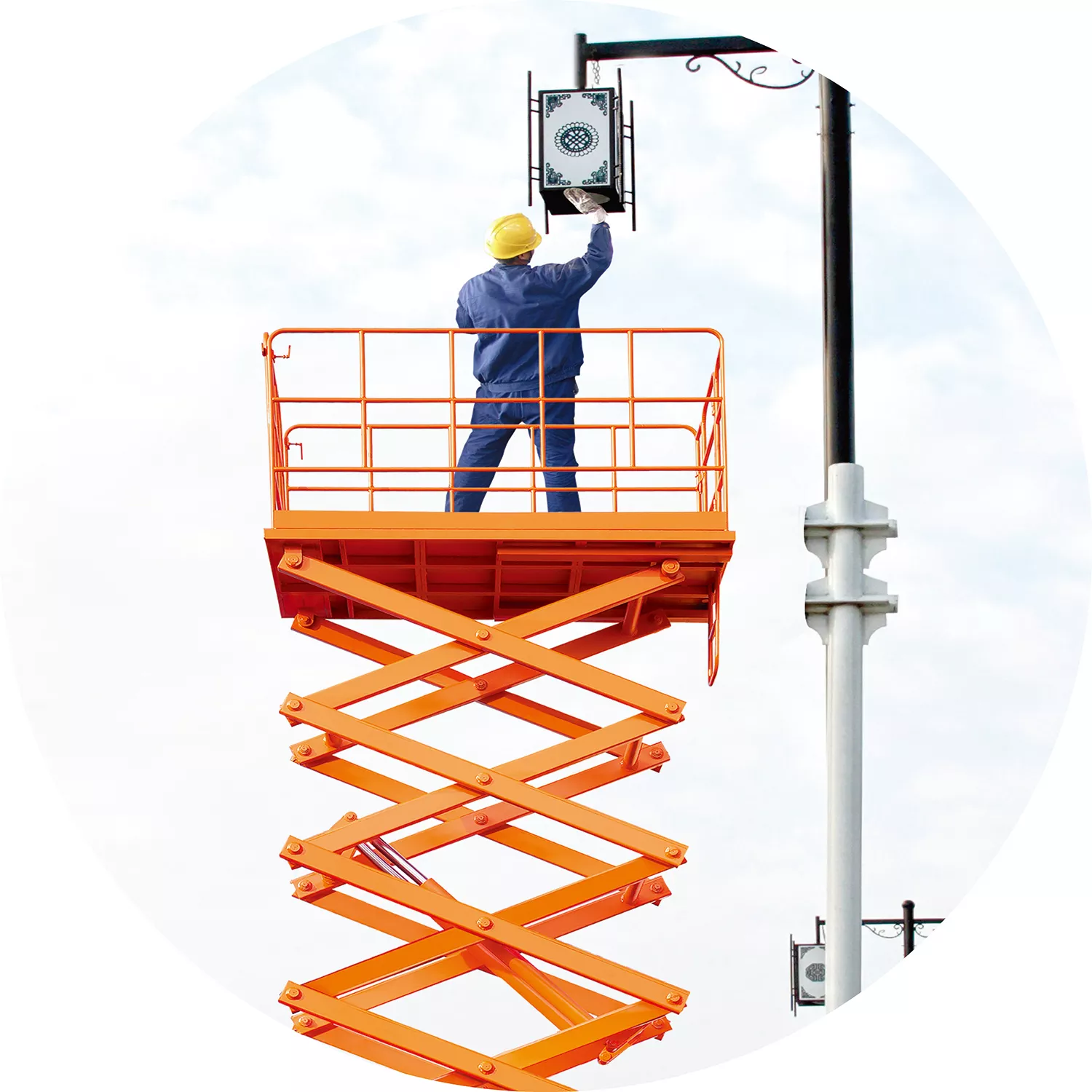

SJY series mobile hydraulic lifting table is widely used in high-altitude installation, maintenance, decoration, cleaning and other occasions requiring mobile operations, and can also be used as a tool for short-distance handling and parallel loading and unloading of goods. Its scissor-type mechanical structure makes aerial work more convenient, efficient and safe.

● The lifting structure is made of high-strength manganese steel rectangular tube;

● Equipped with a safety protection device to prevent the lifting platform from overloading;

● Equipped with safety protection valve to prevent hydraulic pipeline rupture.

SJY

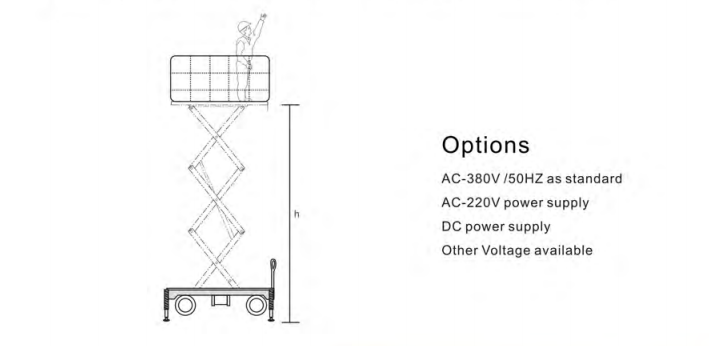

Model Load capacity(kg) Max platform height(mm) Min platform height(mm) Platform size(mm) Lifting time(s) Self weight(kg)
SJY0.3-6 300 6000 1200 1780×840 50 1000
SJY0.5-6 500 6000 1300 1780×840 50 1100
SJY1-6 1000 6000 1400 1780×1000 60 1400
SJY0.3-9 300 9000 1400 2000×1000 70 1400
SJY0.5-9 500 9000 1400 2000×1000 70 1500
SJY1-9 1000 9000 1500 2000×1200 75 1850
SJY0.3-11 300 11000 1600 2150×1200 70 2000
SJY0.5-11 500 11000 1600 2150×1200 80 2100
SJY0.3-12 300 12000 1600 2350×1350 85 2200
SJY0.5-12 500 12000 1600 2350×1350 90 2300
SJY0.3-14 300 14000 2000 2600×1500 120 2800
SJY0.5-14 500 14000 2000 2600×1500 130 3100
SJY0.3-16 300 16000 2100 1800×1500 180 3200
SJY0.3-6(light) 300 6000 1300 1850×1000 50 975
SJY0.3-9(light) 300 9000 1600 1900×1000 70 1150
SJY0.3-11(light) 300 11000 1630 2200×1200 70 1450

Description

SJY series mobile hydraulic lifting table is widely used in high-altitude installation, maintenance, decoration, cleaning and other occasions requiring mobile operations, and can also be used as a tool for short-distance handling and parallel loading and unloading of goods. Its scissor-type mechanical structure makes aerial work more convenient, efficient and safe.

● The lifting structure is made of high-strength manganese steel rectangular tube;

● Equipped with a safety protection device to prevent the lifting platform from overloading;

● Equipped with safety protection valve to prevent hydraulic pipeline rupture.

SJY

Model Load capacity(kg) Max platform height(mm) Min platform height(mm) Platform size(mm) Lifting time(s) Self weight(kg)
SJY0.3-6 300 6000 1200 1780×840 50 1000
SJY0.5-6 500 6000 1300 1780×840 50 1100
SJY1-6 1000 6000 1400 1780×1000 60 1400
SJY0.3-9 300 9000 1400 2000×1000 70 1400
SJY0.5-9 500 9000 1400 2000×1000 70 1500
SJY1-9 1000 9000 1500 2000×1200 75 1850
SJY0.3-11 300 11000 1600 2150×1200 70 2000
SJY0.5-11 500 11000 1600 2150×1200 80 2100
SJY0.3-12 300 12000 1600 2350×1350 85 2200
SJY0.5-12 500 12000 1600 2350×1350 90 2300
SJY0.3-14 300 14000 2000 2600×1500 120 2800
SJY0.5-14 500 14000 2000 2600×1500 130 3100
SJY0.3-16 300 16000 2100 1800×1500 180 3200
SJY0.3-6(light) 300 6000 1300 1850×1000 50 975
SJY0.3-9(light) 300 9000 1600 1900×1000 70 1150
SJY0.3-11(light) 300 11000 1630 2200×1200 70 1450
