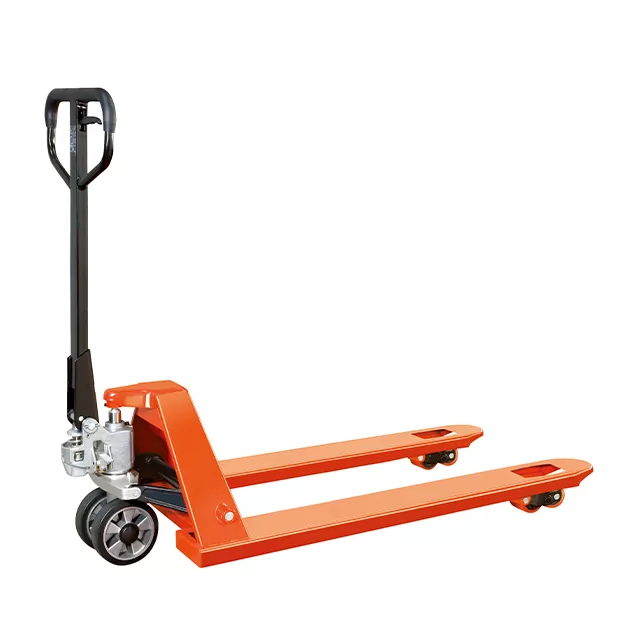

Hand Pallet Truck Top Quality CBY-AC

Hand Pallet Truck Top Quality CBY-AC

  • Model: CBY-AC
  • Brand: NIULI
  • Code (HS/Product): 8427900000

Product Description

Product Superiority

– hand pallet truck use robots welding to ensure the excellent quality and high craft level, which makes sure the stronger and stability of fork chassis and long working life.

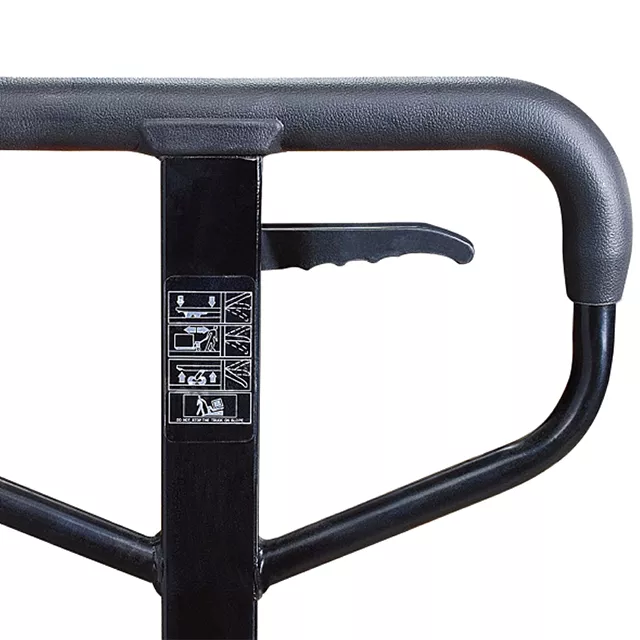

– Ergonomically designed handle with comfortable rubber grip allow the optimized safety and comfortable to ensure the excellent operation of three position operational handle lever for lifting, transporting and lowering purpose.

– Easy access to the lowest pallets and containers with the minimum floor clearance.

– The pallet truck with excellent turning angle of 190 degree to ensure a 4-directional movement capability and it provides the flexibility to maneuver wide loads through standard aisles.

forklift and stacker

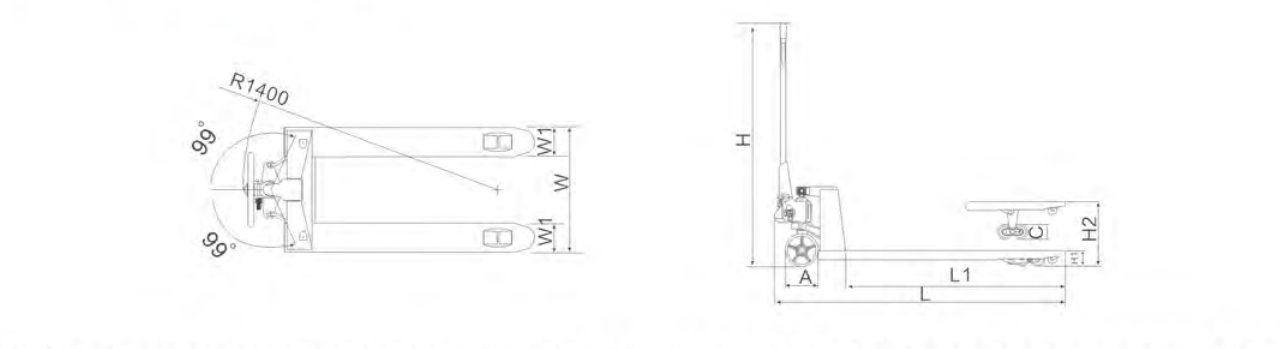

Model CBY-AC2.0 CBY-AC2.5 CBY-AC3.0
Capacity(kg) 2000 2500 3000
Min.fork height(mm) 75/85 75/85 75/85
Max.fork height(mm) 185/195 185/195 185/195
Lifting height(mm) 110 110 110
Fork  length(mm) 1150/1220 1150/1220 1150/1220
Single fork width(mm) 160 160 160
Width overall forks(mm) 550/685 550/685 550/685
Fork wheel-single(mm) Φ74×93/Φ80×93 Φ74×93/Φ80×93 Φ74×93/Φ80×93
Fork wheel-tandem(mm) Φ80×70 Φ80×70 Φ80×70
Steering wheel(mm) Φ180×50 Φ180×50 Φ180×50
Self weight(kg) 73-92 73-92 73-92
Qty/20 feet container(pcs) 180/144 180/144 180/144

Description

Product Superiority

– hand pallet truck use robots welding to ensure the excellent quality and high craft level, which makes sure the stronger and stability of fork chassis and long working life.

– Ergonomically designed handle with comfortable rubber grip allow the optimized safety and comfortable to ensure the excellent operation of three position operational handle lever for lifting, transporting and lowering purpose.

– Easy access to the lowest pallets and containers with the minimum floor clearance.

– The pallet truck with excellent turning angle of 190 degree to ensure a 4-directional movement capability and it provides the flexibility to maneuver wide loads through standard aisles.

forklift and stacker

Model CBY-AC2.0 CBY-AC2.5 CBY-AC3.0
Capacity(kg) 2000 2500 3000
Min.fork height(mm) 75/85 75/85 75/85
Max.fork height(mm) 185/195 185/195 185/195
Lifting height(mm) 110 110 110
Fork  length(mm) 1150/1220 1150/1220 1150/1220
Single fork width(mm) 160 160 160
Width overall forks(mm) 550/685 550/685 550/685
Fork wheel-single(mm) Φ74×93/Φ80×93 Φ74×93/Φ80×93 Φ74×93/Φ80×93
Fork wheel-tandem(mm) Φ80×70 Φ80×70 Φ80×70
Steering wheel(mm) Φ180×50 Φ180×50 Φ180×50
Self weight(kg) 73-92 73-92 73-92
Qty/20 feet container(pcs) 180/144 180/144 180/144
