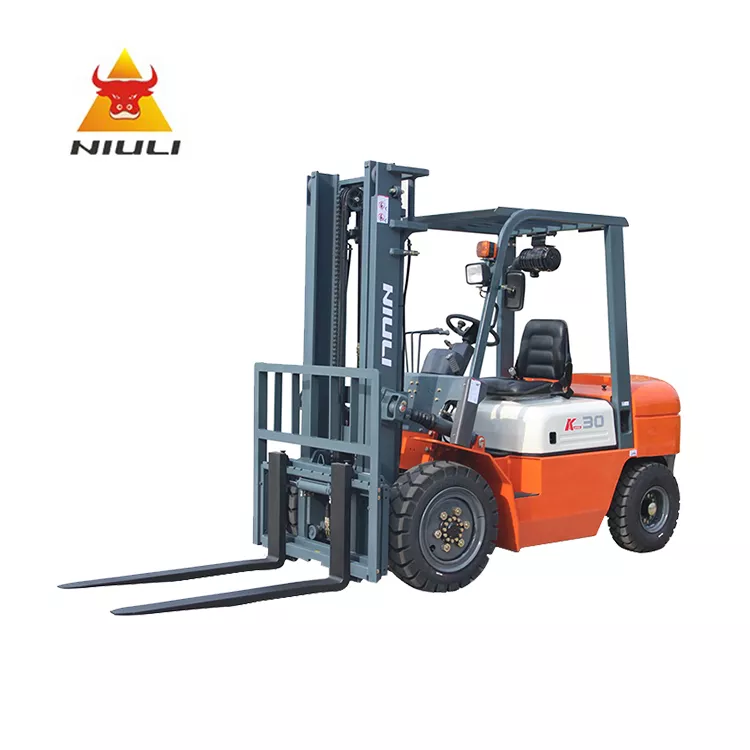

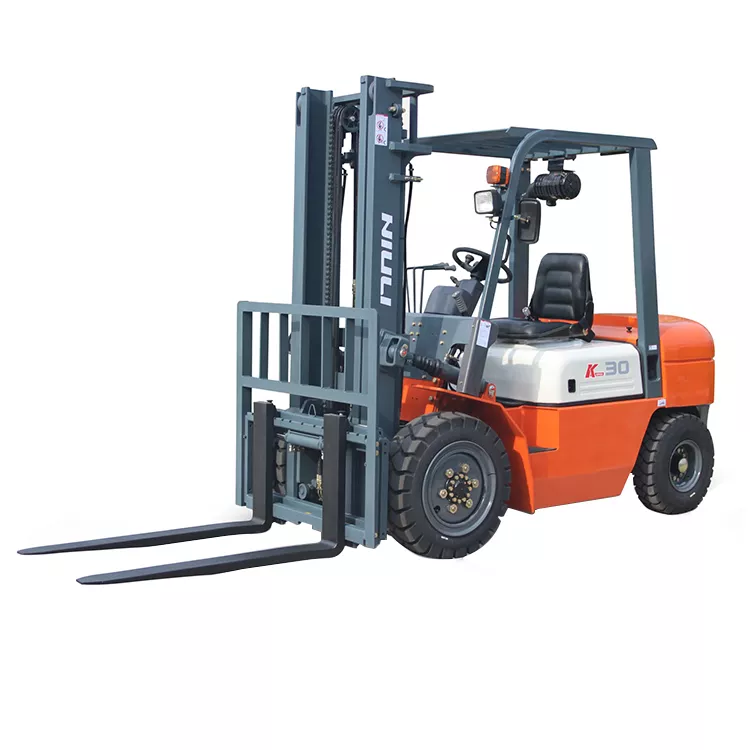

Diesel Forklift K Series

Diesel Forklift K Series

FD30/35

NIULI

8427900000

Product Description

The motor power system and power transmission system adopt domestic advanced shock absorption technology to reduce the vibration from the power system and make the operator feel more comfortable. Equipped with a high-definition liquid crystal display device, the operator can easily understand the working status, expand the visual area, and make it more convenient and fast for the operator to view the instrument.

● The wide-view gantry allows the operator to obtain a larger field of vision, which not only improves work efficiency, but also enhances safety;

● Adjustable safety seat to make the operator feel more comfortable;

● Ultra-low anti-skid pedal Specially set anti-skid pedal.

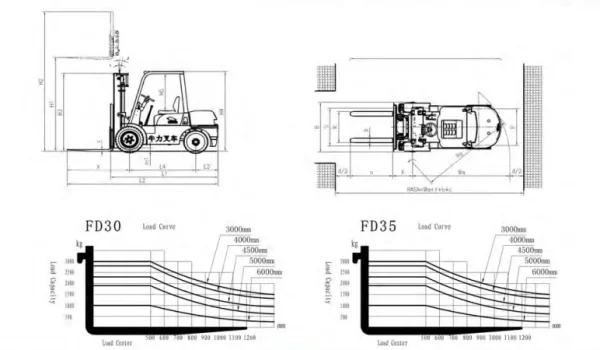

Model FB30 FB35
Characteristics Power Type Diesel Diesel
Operation type seat seat
Rated capacity(kg) 3000 3500
Load centre(mm) 500 500
Lift height(mm) 3000 3000
Mast Tilt Angle(Deg) 6°/12° 6°/12°
Dimensions Forksize(L*W*T)(mm) 1070x125x45 1070x125x45
Length of fork(with/without fork)(mm) 3870/2750 3980/
Overall width(mm) 1230 1230
Mast Extended Height(with backrest)(mm) 4110 4110
Mast Lowered Height(mm) 2050 2050
Overhead Guard Height(mm) 2140 2140
seat height(mm) 1000 1000
fork adjustment(max/min)(mm) 1100/250 1100/250
Turning Radius(outside)(mm) 2495 2640
Min.tinersecting aisle(mm) 2500 2700
min.ground clearance(mm) 126 126
front overhang(mm) 500 500
rear overhang(mm) 570 570
wheel base(mm) 1770 1850
tread(front/rear(mm) 1000/970 1000/970
Performance Travel speed(Full/Empty load)(km/h) 18/19 18/19
Lifting speed(Full/Empty load)(mm/s) 460/540 460/540
Lowering speed(Full/Empty load)(mm/s) 450/420 450/420
Maximum traction(Full/Empty load)(KN) 20/16 21/17
Max.Gradeability(%) 20 20
Truck weight(unload)(kg) 4280 4500
Others Tyres,number (front/rear) 2X/2 2X/2
Tyre type Polyurethane Polyurethane
Tyre dimensions 28×9-15-12PR/6.50-10-10PR 28×9-15-12PR/6.50-10-10PR
Service braking Feet/Hydraulic Feet/Hydraulic
Stopping braking Manual/mechanical Manual/mechanical

Description

The motor power system and power transmission system adopt domestic advanced shock absorption technology to reduce the vibration from the power system and make the operator feel more comfortable. Equipped with a high-definition liquid crystal display device, the operator can easily understand the working status, expand the visual area, and make it more convenient and fast for the operator to view the instrument.

● The wide-view gantry allows the operator to obtain a larger field of vision, which not only improves work efficiency, but also enhances safety;

● Adjustable safety seat to make the operator feel more comfortable;

● Ultra-low anti-skid pedal Specially set anti-skid pedal.

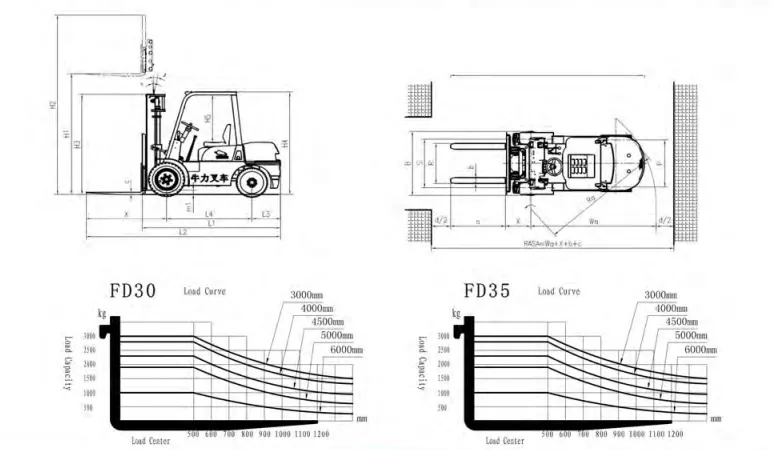

Model FB30 FB35
Characteristics Power Type Diesel Diesel
Operation type seat seat
Rated capacity(kg) 3000 3500
Load centre(mm) 500 500
Lift height(mm) 3000 3000
Mast Tilt Angle(Deg) 6°/12° 6°/12°
Dimensions Forksize(L*W*T)(mm) 1070x125x45 1070x125x45
Length of fork(with/without fork)(mm) 3870/2750 3980/
Overall width(mm) 1230 1230
Mast Extended Height(with backrest)(mm) 4110 4110
Mast Lowered Height(mm) 2050 2050
Overhead Guard Height(mm) 2140 2140
seat height(mm) 1000 1000
fork adjustment(max/min)(mm) 1100/250 1100/250
Turning Radius(outside)(mm) 2495 2640
Min.tinersecting aisle(mm) 2500 2700
min.ground clearance(mm) 126 126
front overhang(mm) 500 500
rear overhang(mm) 570 570
wheel base(mm) 1770 1850
tread(front/rear(mm) 1000/970 1000/970
Performance Travel speed(Full/Empty load)(km/h) 18/19 18/19
Lifting speed(Full/Empty load)(mm/s) 460/540 460/540
Lowering speed(Full/Empty load)(mm/s) 450/420 450/420
Maximum traction(Full/Empty load)(KN) 20/16 21/17
Max.Gradeability(%) 20 20
Truck weight(unload)(kg) 4280 4500
Others Tyres,number (front/rear) 2X/2 2X/2
Tyre type Polyurethane Polyurethane
Tyre dimensions 28×9-15-12PR/6.50-10-10PR 28×9-15-12PR/6.50-10-10PR
Service braking Feet/Hydraulic Feet/Hydraulic
Stopping braking Manual/mechanical Manual/mechanical
